Renogy 24V / 20A MPPT Solar Renewable Energy Controller Parameter Adjustable LCD Display Solar Panel Regulator fit for Gel Sealed Flooded and Lithium Battery

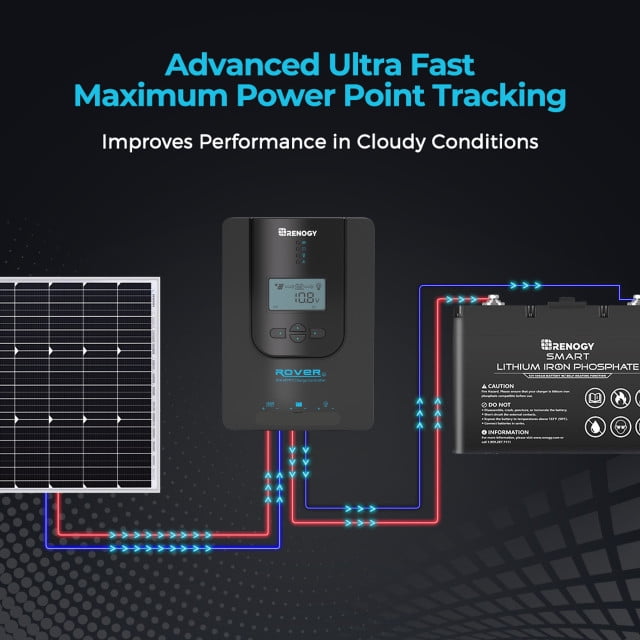

<p>The 20A Rover Li MPPT Charge Controller features a sturdy case that protects against general wear and tear, and an aluminum heat sink that is perfect for heat dissipation. This intelligent controller is not only capable of up to 99% tracking efficiency, but can also self-diagnose itself, displaying error codes that you can easily look up. Capable of automatically detecting 12V/24V systems, this crucial system component can also handle various battery options such as GEL and Lithium. Pair this charge controller with the Renogy BT-1 and Renogy BT app to view your system's performance in real time and make parameter changes without having to get up.</p>

• About this item

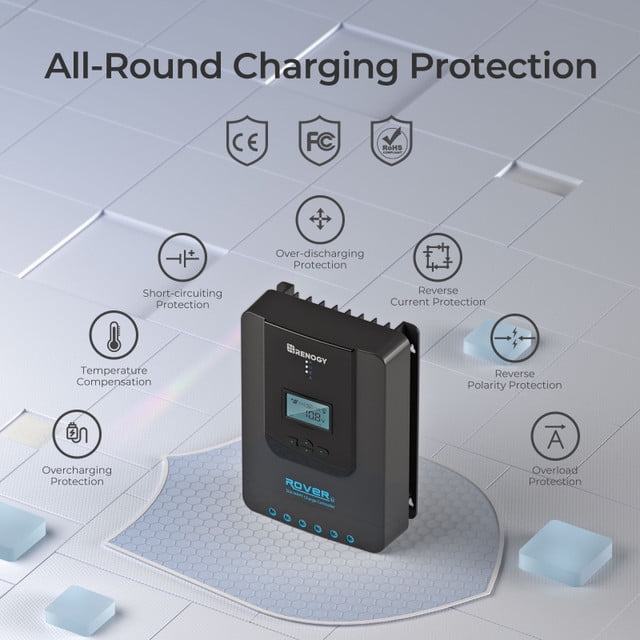

  【Cetified Protections】The Renogy Rover 20A Solar Charge Controller offers 8 electronic protections that actively monitor voltage, current, and load changes, ensuring efficient and safe battery charging.
  【Rapid Heat Dissipation】The Rover charge controller excels with its rapid heat dissipation, ensuring efficient performance in even the most demanding environments. Its ability to quickly release heat helps maintain peak performance, protecting your batteries and system components.

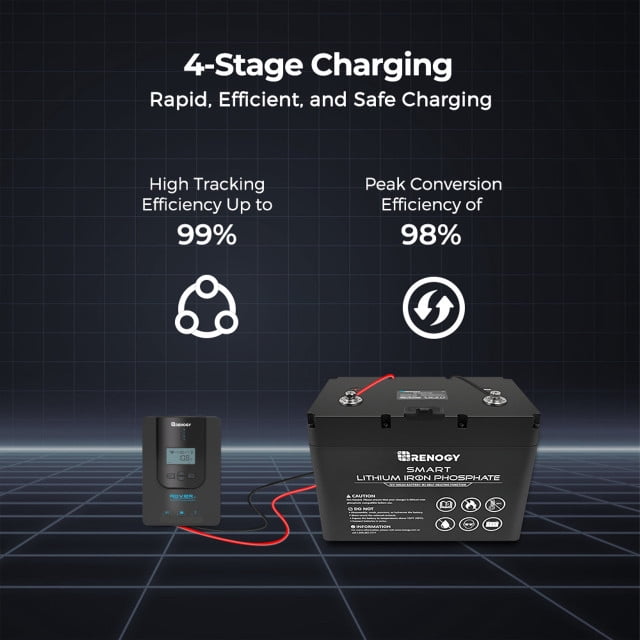

  【Powering Your Adventures Faster】Experience unmatched charging efficiency with our MPPT charge controller. It maximizes every bit of sunlight, ensuring optimal battery charging. In just 4.9 hours, it can fully charge a 12V 100Ah battery, making it the ideal companion for your off-grid adventures.
• Specifications
  Electrical Parameters

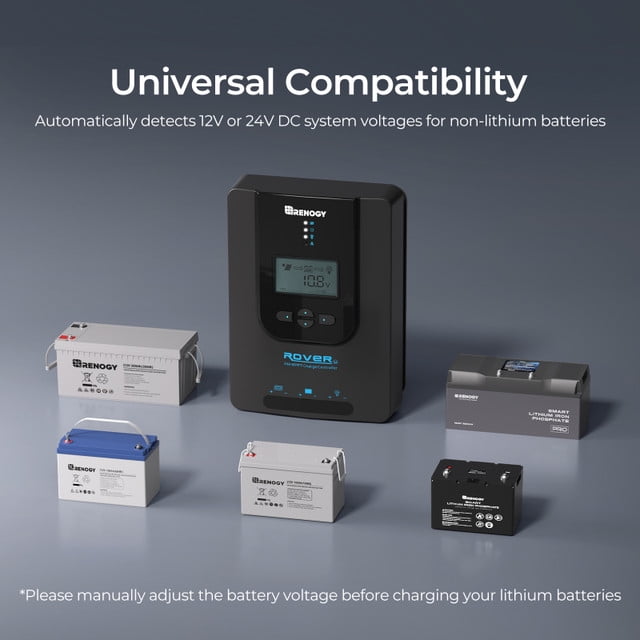

  Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries)

  Rated Charge Current: 20A

  Max. PV Input Voltage: 95 VDC

  Max. PV Input Power: 12V/260W, 24V/520W

  Power Consumption: ＜100mA/12V; ＜58mA/24V

  Max Battery Voltage: 32V

  Ground Type: Negative

  Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.

  Protection Level: IP32

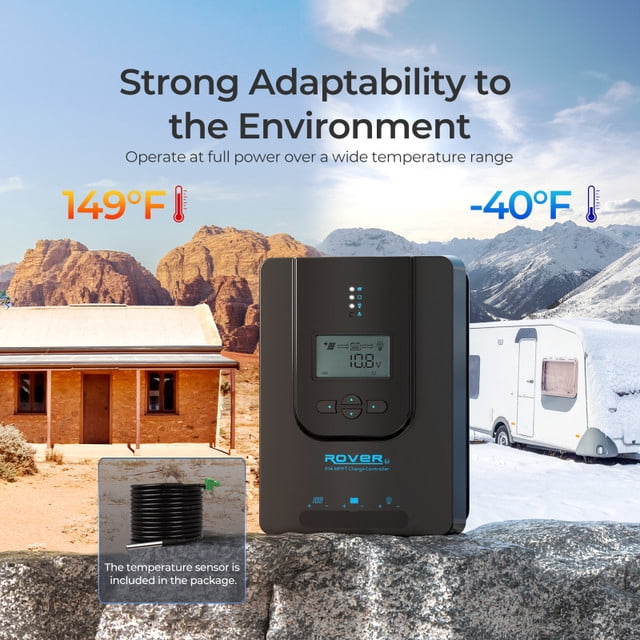

  Operating Temperature Range: -35°C to 45°C; -31°F to 113°F

  Storage Temperature Range: -35°C to 75°C; -31°F to 167°F

  Operating / Storage Humidity: ≤ 90%, No Condensation

  Temperature Compensation: -3mV/°C/2V

  Mechanical Specifications

  Dimensions: 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in

  Weight: 3.1 lbs / 1.4 kg

  Max. Terminals Size: 8 AWG 10mm2
• Accessories
  Remote Temperature Sensor x 1

  Mounting Brackets x 4
• Warranty
  Material and Workmanship Warranty: 3 Years
• Certifications
  CE: YES

  FCC Class B Part 15 Compliant: YES
